Machine vision systems use cameras, lighting, image-processing methods, and software to help machines interpret visual information.
Industrial machine vision systems are widely associated with manufacturing because they can examine products, measure features, identify visible defects, and guide equipment. The basic idea is similar to human visual inspection, but the image capture and analysis are performed through digital systems.
Machine vision inspection systems developed alongside industrial cameras, computers, sensors, and automation equipment. Early systems generally relied on fixed rules, such as checking whether an object had a particular shape, size, position, or brightness. Modern systems can combine these methods with machine learning and artificial intelligence for more complex visual tasks.
A typical automated machine vision system contains several connected elements. Machine vision cameras capture images, lighting helps create consistent visual conditions, image-processing software analyzes the images, and a control system interprets the results. Depending on the application, the system may then record information, trigger an inspection result, guide a robot, or identify an item for further processing.
How Machine Vision Works

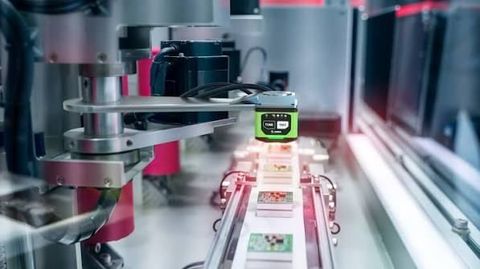

The process usually begins when an object enters a defined inspection area. A camera captures one or more images, often with controlled lighting designed to make specific features easier to distinguish.
Machine vision software then processes the image. It may examine dimensions, edges, colors, patterns, surface features, codes, or the position of an object. The result can be compared with predefined criteria before an automated action is taken.
Industrial image processing systems can use different techniques depending on the application. Two-dimensional imaging is suitable for many surface and shape inspections, while 3D machine vision systems can collect depth information to analyze height, volume, position, or three-dimensional geometry.
Main Components
A machine vision setup may include:
Machine vision cameras for image capture.
Lighting systems for controlling illumination and contrast.
Lenses and optical components for focusing and framing.
Machine vision software for image analysis and decision-making.
Industrial computers or controllers for processing and communication.
Sensors for detecting when an object is ready for imaging.
Communication interfaces for connecting inspection equipment with production systems.
The configuration varies according to the object being inspected, the required image detail, movement speed, environmental conditions, and type of analysis.
Importance
Machine vision is important because visual inspection is part of many manufacturing and logistics processes. Human inspection can involve repetitive viewing of large numbers of similar objects, while automated visual inspection systems can examine images according to defined criteria.
Industrial vision inspection equipment can be used to check dimensions, surface conditions, labels, assembly positions, packaging features, and other visible characteristics. The technology can also help collect inspection records that can later be analyzed.
Applications in Manufacturing
Automated quality inspection systems are used in areas such as electronics, automotive production, packaging, food processing, pharmaceuticals, and general manufacturing. The specific inspection task varies between industries.
For example, a system may verify whether a component is correctly positioned before another assembly step occurs. Another system may inspect a surface for visible irregularities or check whether printed information is located correctly.
High-speed machine vision systems are designed for processes where objects move quickly through an inspection area. They require suitable cameras, lighting, processing hardware, and synchronization so that useful images can be captured while objects are moving.
Supporting Robotics
Robotic vision systems connect image analysis with robotic equipment. A camera can identify an object's location or orientation, while software translates that information into instructions for a robotic system.
This arrangement can be used for activities such as picking, sorting, positioning, assembly, and inspection. The camera does not physically move the object; instead, visual information can help the robot determine where and how to act.
Factors That Affect Results
Machine vision performance depends on several factors. Lighting, camera position, lens selection, object movement, background conditions, and image resolution can all affect the information available to the software.
Systems also need clearly defined inspection criteria. A poorly defined requirement can make image analysis difficult, regardless of the hardware or software used. Environmental changes, reflective surfaces, shadows, and variations between objects may also require additional testing.
| Machine Vision Element | Main Function | Example Application |
|---|---|---|
| Camera | Captures visual information | Product inspection |
| Lighting | Controls image visibility | Surface inspection |
| Lens | Frames and focuses the image | Dimensional analysis |
| Image processing | Extracts visual information | Defect detection |
| AI model | Identifies learned patterns | Complex visual classification |
| Controller | Coordinates system actions | Production-line inspection |
| 3D sensor | Captures depth information | Height and shape measurement |
Recent Updates
Between 2024 and 2026, machine vision development has increasingly focused on artificial intelligence, 3D imaging, system connectivity, and standardization. Research and industry activity have expanded around AI-based image analysis while traditional rule-based inspection remains an important part of industrial applications.
Growth of AI-Based Inspection
AI machine vision systems can use machine-learning models to recognize patterns in images. Instead of relying entirely on manually defined rules, some systems can be trained using representative image datasets.
Advanced AI vision inspection systems are being studied for applications where visual differences are difficult to describe with simple rules. These systems still depend on suitable training data, testing, validation, and monitoring. Research has also highlighted the importance of reliability, transparency, data quality, security, and robustness when AI is used in industrial environments.
Development of 3D Vision
3D machine vision systems have continued to develop through improvements in sensors, image processing, and depth analysis. These systems can provide information about an object's three-dimensional structure rather than relying only on a flat image.
Recent developments have also connected 3D vision with AI and robotic applications. This can support inspection, object recognition, and robotic guidance where depth information is important.
Greater Focus on Standards and Integration
Standardization has become an important area of machine vision development. Work connected with camera and image-sensor specifications is progressing toward clearer methods for measuring and presenting technical information. ISO/DIS 24942 is currently under development for cameras and image sensors used in machine vision applications.
Connectivity is also receiving attention. IEEE has an active project addressing connectivity requirements for online machine vision detection in intelligent manufacturing, including interoperability, communication, data access, and information safety.
Industrial machine vision automation is also moving toward greater integration between cameras, software, robots, production systems, and distributed computing environments. ITU-T work on a framework for industrial machine vision reflects interest in standardized interfaces and the use of machine vision data across connected environments.
Tools and Resources
Several types of tools can help people understand, design, or evaluate machine vision applications. The appropriate resource depends on whether the goal is learning, system planning, image analysis, or technical evaluation.
Software and Development Tools
Machine vision software may include tools for camera configuration, image acquisition, measurement, pattern recognition, defect analysis, and communication with industrial controllers. Some platforms also include machine-learning functions for training and evaluating image-recognition models.
Image-processing libraries and computer vision development environments can be used to experiment with image filtering, edge detection, object recognition, and measurement. These resources are particularly useful for understanding how raw images become structured information.
Standards and Technical Resources
Technical standards can help explain how cameras, image sensors, interfaces, and inspection systems are described. Organizations involved in machine vision standardization include ISO, IEEE, EMVA, and other industry groups.
Useful resources include:
Machine vision standards and technical documents.
Camera specification guides.
Lens and lighting selection references.
Image-processing tutorials.
Inspection planning templates.
Machine-learning dataset documentation.
Robotics and automation integration guides.
Planning an Inspection System
A basic planning template can document the inspection objective, object characteristics, camera position, lighting conditions, image resolution, processing method, decision criteria, and system interfaces.
For custom industrial machine vision applications, this type of documentation can help define the relationship between the inspection requirement and the technical configuration. It can also identify environmental conditions that may influence image quality.
FAQs
What are industrial machine vision systems?
Industrial machine vision systems use cameras, lighting, software, and processing hardware to capture and analyze visual information in industrial environments. They can support inspection, measurement, identification, and robotic guidance.
How do machine vision inspection systems work?
Machine vision inspection systems capture images of an object and analyze selected visual characteristics. The software may compare measurements or patterns against predefined criteria and then communicate the inspection result to another system.
What are AI machine vision systems used for?
AI machine vision systems can analyze visual patterns that may be difficult to describe through fixed rules. They can be applied to classification, defect detection, object recognition, and other image-analysis tasks when suitable training data is available.
What is the difference between 2D and 3D machine vision systems?
Two-dimensional systems primarily analyze information represented in a flat image, while 3D machine vision systems also capture depth or spatial information. Three-dimensional data can be useful for measuring height, shape, position, and volume.
What are robotic vision systems?
Robotic vision systems combine cameras and image-analysis technology with robots. Visual information can help a robot locate, identify, orient, or inspect objects during an automated process.
Conclusion
Machine vision systems combine imaging hardware, controlled lighting, image processing, and software to interpret visual information. Their applications range from automated quality inspection and measurement to robotics and production monitoring. Recent developments have increased the use of AI, 3D imaging, connected systems, and standardized technical frameworks. The technology continues to develop around the need for reliable image analysis, consistent data, and effective integration with industrial equipment.
