PCB assembly machines are automated or semi-automated production machines used to place electronic components onto printed circuit boards.
They form an important part of electronics manufacturing, where components must be positioned accurately and connected to conductive tracks on a circuit board.
A modern PCB assembly line can include solder paste printers, solder paste inspection systems, pick-and-place machines, reflow ovens, automated optical inspection equipment, and testing systems. Each machine performs a specific operation and communicates with other stages of the production process.
Understanding how these machines work helps explain how electronic components are assembled into functional circuit boards.
What Are PCB Assembly Machines?
PCB assembly machines are production equipment used during the process of attaching electronic components to printed circuit boards.
The equipment can handle components such as:
- Resistors
- Capacitors
- Integrated circuits
- Diodes
- Transistors
- Connectors
- Sensors
- Microcontrollers
- Power components
Different PCB assembly machines are designed for different stages of the manufacturing process. Some apply solder paste, others position components, while additional equipment heats, inspects, or tests the assembled board.
How PCB Assembly Machines Work
A typical automated PCB assembly process includes several stages.
1. PCB Loading
The bare printed circuit board enters the assembly line through a loading system or conveyor.
The board is positioned and transferred between machines while maintaining a controlled orientation.
2. Solder Paste Printing
A solder paste printer applies solder paste to selected areas of the PCB.
A stencil contains openings corresponding to the locations where components will be connected. A squeegee moves solder paste across the stencil, transferring controlled amounts onto the board.
3. Solder Paste Inspection
An inspection system can examine the printed solder paste deposits.
Machine vision or three-dimensional measurement techniques can check characteristics such as position, height, volume, and coverage.

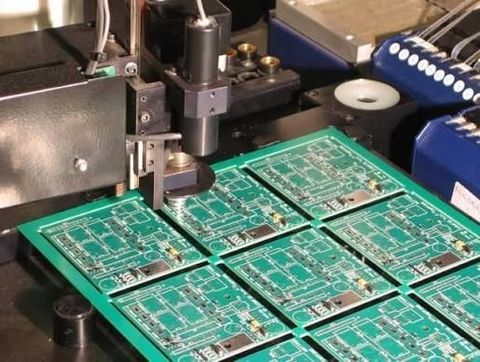

4. Component Placement
A pick-and-place machine selects electronic components from feeders and positions them on the solder-paste-coated PCB.
The machine uses programmable coordinates, cameras, motion systems, and precision placement heads to position components accurately.
5. Reflow Soldering
The populated PCB passes through a reflow oven.
Controlled heating profiles melt the solder paste and form solder joints between the components and PCB pads. The board is then cooled under controlled conditions.
6. Automated Optical Inspection
After soldering, an automated optical inspection system can examine the assembled PCB.
Cameras and software can identify issues such as missing components, incorrect orientation, placement errors, solder-related irregularities, and other visible conditions.
7. Electrical or Functional Testing
Additional testing can evaluate electrical characteristics or functional behavior.
Depending on the product, testing may include in-circuit testing, flying-probe testing, or functional testing.
Main Types of PCB Assembly Machines
Solder Paste Printers
Solder paste printers apply controlled quantities of solder paste to PCB pads before component placement.
Printing accuracy can influence subsequent soldering quality because the paste must be deposited in the correct locations.
Pick-and-Place Machines
Pick-and-place machines automatically collect components from feeders and position them on the PCB.
They can handle large numbers of components and are available in configurations designed for different component sizes and production requirements.
Reflow Ovens
Reflow ovens heat populated PCBs according to programmed temperature profiles.
The heating process allows solder paste to melt and form electrical and mechanical connections between components and PCB pads.
Wave Soldering Machines
Wave soldering equipment is primarily used for suitable through-hole and selected mixed-technology assemblies.
The PCB passes over a controlled wave of molten solder that contacts exposed soldering areas.
Selective Soldering Machines
Selective soldering equipment applies solder to specific through-hole locations rather than exposing the entire board to a solder wave.
This can be useful for assemblies containing both surface-mount and through-hole components.
Automated Optical Inspection Machines
AOI systems use cameras and image-processing software to inspect assembled PCBs.
They can check component presence, placement, orientation, solder joints, and other visible features.
PCB Testing Equipment
Testing equipment evaluates electrical or functional characteristics after assembly.
The appropriate testing method depends on the PCB design and product requirements.
Comparison of PCB Assembly Machines
| Machine | Main Function | Typical Assembly Stage |
|---|---|---|
| Solder paste printer | Applies solder paste | Before component placement |
| SPI system | Inspects solder paste | After printing |
| Pick-and-place machine | Places components | Component assembly |
| Reflow oven | Forms solder joints | After placement |
| Wave soldering machine | Solders through-hole components | Soldering |
| Selective soldering machine | Solders selected connections | Through-hole assembly |
| AOI system | Inspects assembled boards | After soldering |
| Testing system | Evaluates electrical performance | Final inspection/testing |
Key Components of a Pick-and-Place Machine
Component Feeders
Feeders present electronic components to the placement mechanism.
Different feeder configurations accommodate different component packaging formats, including reels, trays, and other component carriers.
Placement Head
The placement head picks up components and positions them on the PCB.
Some machines use multiple placement heads to handle several components within a production cycle.
Vision System
Cameras can inspect component orientation and position before placement. PCB reference markers can also help the machine establish the board's exact position.
Motion System
Motors and precision positioning mechanisms move the placement head across the working area.
Control System
The controller coordinates component pickup, board positioning, camera information, movement, and placement sequences.
PCB Conveyor
A conveyor transports boards through the machine and aligns them for assembly.
Surface Mount Technology and PCB Assembly
Surface Mount Technology, or SMT, is widely used for mounting components directly onto PCB surfaces.
SMT assembly machines can place small components at high placement density. Automated solder paste printing, component placement, reflow soldering, and optical inspection can be integrated into an SMT production line.
Through-hole technology is another assembly method in which component leads pass through holes in the PCB. Some electronic products use a combination of SMT and through-hole components.
Factors Affecting PCB Assembly Performance
Component Size
Very small components require suitable placement equipment, feeders, vision systems, and handling settings.
Placement Accuracy
Component placement must align with PCB pads and assembly requirements.
PCB Design
Board layout, component density, pad geometry, thermal characteristics, and board dimensions influence machine configuration.
Solder Paste Quality
Solder paste characteristics and storage conditions can influence printing and solder-joint formation.
Reflow Profile
Temperature, heating rate, peak temperature, and cooling conditions affect soldering performance.
Production Volume
The required production rate can influence the number, configuration, and automation level of machines used on the assembly line.
PCB Assembly Automation
Modern PCB assembly lines can connect individual machines into a coordinated production system.
Boards can move automatically between printing, inspection, placement, soldering, and testing stages.
Production software can track board identification, machine status, component information, inspection results, and process parameters.
Automated material handling can also reduce manual board transfer between production stages.
Machine Vision in PCB Assembly
Machine vision plays an important role in automated PCB assembly.
Cameras can locate PCB reference points, inspect component orientation, verify component presence, and examine soldered connections.
Three-dimensional inspection systems can provide additional information about solder paste deposits or component heights.
The effectiveness of machine vision depends on camera resolution, lighting, image-processing algorithms, board design, and inspection settings.
Applications of PCB Assembly Machines
Consumer Electronics
PCB assembly machines are used to manufacture circuit boards for appliances, personal electronics, communication products, and other consumer equipment.
Automotive Electronics
Automotive electronic systems can include control modules, sensors, display systems, power electronics, and communication circuits.
Industrial Electronics
Industrial controllers, sensors, automation systems, measurement devices, and control equipment commonly use assembled PCBs.
Medical Electronics
Electronic medical equipment can contain circuit boards that require controlled assembly and inspection processes.
Telecommunications
Communication equipment, network hardware, and related electronic products rely on assembled circuit boards.
Aerospace and Defense Electronics
Specialized electronic systems can require carefully controlled PCB assembly and inspection procedures based on the product and applicable requirements.
Maintenance of PCB Assembly Machines
Regular maintenance is important for maintaining machine accuracy and production consistency.
Maintenance can include:
- Cleaning placement heads
- Inspecting feeders
- Checking conveyor mechanisms
- Cleaning camera lenses
- Verifying machine alignment
- Inspecting solder paste printing equipment
- Checking reflow oven temperature profiles
- Inspecting soldering equipment
- Updating software when required
- Performing calibration procedures
Maintenance schedules should be based on equipment specifications, operating conditions, production volume, and quality requirements.
Safety Considerations
PCB assembly equipment can contain moving mechanisms, heated surfaces, electrical systems, compressed air, and other potential hazards.
Operators should use machine guards, emergency-stop systems, interlocks, and appropriate personal protective equipment according to the equipment and workplace requirements.
Reflow ovens and soldering systems operate at elevated temperatures, so appropriate procedures are required when accessing or maintaining heated equipment.
Fumes generated during soldering should also be managed using suitable ventilation and workplace controls.
Frequently Asked Questions
What are PCB assembly machines?
PCB assembly machines are automated or semi-automated machines used to apply solder paste, place components, solder connections, inspect boards, and test assembled printed circuit boards.
What is a pick-and-place machine?
A pick-and-place machine automatically picks electronic components from feeders or trays and places them at programmed locations on a PCB.
What is the role of a reflow oven?
A reflow oven heats a populated PCB according to a controlled temperature profile so that solder paste melts and forms solder joints between components and PCB pads.
What is AOI in PCB assembly?
AOI stands for Automated Optical Inspection. AOI equipment uses cameras and image-processing software to inspect assembled PCBs for visible assembly conditions such as missing components, incorrect placement, orientation issues, and selected solder defects.
What is the difference between SMT and through-hole assembly?
SMT components are mounted directly onto PCB surfaces, while through-hole components have leads that pass through holes in the circuit board. Many assemblies combine both technologies.
Conclusion
PCB assembly machines form a connected production environment that transforms bare circuit boards and electronic components into assembled electronic products. The process can include solder paste printing, inspection, component placement, reflow or selective soldering, optical inspection, and electrical testing.
Different machines perform specialized tasks, while controllers, conveyors, vision systems, and production software coordinate the overall workflow. The appropriate equipment depends on PCB design, component size, production volume, assembly technology, accuracy requirements, and testing needs.
Regular maintenance, calibration, process monitoring, and appropriate safety procedures are important for maintaining consistent PCB assembly operations.
