Industrial screening machines are used to separate materials according to particle size, shape, composition, or other physical characteristics.
They play an important role in industries such as mining, quarrying, construction, recycling, food processing, chemical production, and aggregate handling.
From vibrating screens and rotary screening equipment to trommel systems and specialized screening units, different machine configurations are designed for different material-processing requirements. Understanding how these machines work can help users compare equipment types, operating principles, capacity, and application requirements.
Why Industrial Screening Machines Matter
Material screening is often an important stage between processing operations. Raw materials can contain particles of different sizes, and separating these particles can improve consistency before they move to subsequent processing stages.
For example, aggregate processing may require the separation of fine material from larger particles. Mining operations can use screening to classify crushed ore, while recycling facilities may screen materials into different size fractions.
The screening method selected depends on factors such as material characteristics, required particle sizes, throughput, moisture, and operating conditions.
How Industrial Screening Machines Work
The basic principle behind screening is relatively simple: material is introduced onto a screening surface containing openings of a defined size.
As the material moves across the screen, particles smaller than the openings can pass through, while larger particles continue along the screening surface. Movement can be created through vibration, rotation, mechanical motion, or gravity.
A typical screening process involves four stages:
- Feeding: Material enters the screening machine.
- Material movement: Mechanical motion moves the material across the screening surface.
- Particle separation: Smaller particles pass through the openings.
- Collection: Different size fractions are discharged separately.
The actual separation process can become more complex when materials contain moisture, irregular particles, or a wide range of sizes.
Types of Industrial Screening Machines
Different screening machines use different mechanical principles.
Vibrating Screening Machines
Vibrating screens use controlled vibration to move and stratify material across a screening surface. The vibration encourages smaller particles to migrate toward the screen surface and pass through the openings.
These machines are widely used for aggregate, mineral, and bulk-material processing. Their configuration can include one or multiple screening decks.
Trommel Screening Machines
Trommel screens use a rotating cylindrical drum with perforated screening surfaces. Material moves through the rotating drum while smaller particles fall through the openings.
Trommels can be used in applications involving aggregates, soil, compost, waste materials, and other bulk products.
Rotary Screening Machines
Rotary screening equipment uses rotational movement to separate materials. Depending on the design, these machines can be configured for specific particle-size ranges and processing conditions.

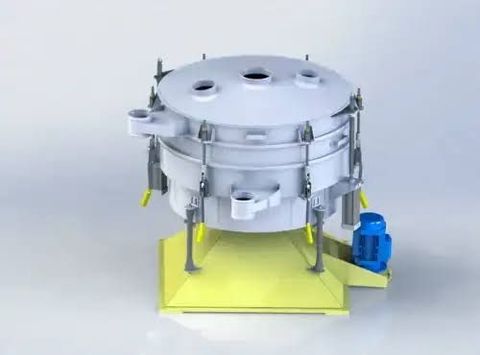

Gyratory Screening Machines
Gyratory screens use controlled horizontal or orbital movement to move material across the screening surface. They can provide relatively precise separation for certain dry bulk materials.
Static Screens
Static screening equipment has no major moving mechanism. Material moves across an inclined screening surface primarily through gravity and material flow.
These systems can have a relatively straightforward mechanical arrangement and are used where processing requirements permit gravity-based separation.
Key Components of Screening Machines
The construction of an industrial screening machine varies according to its type, but several components are commonly found.
Screening Surface
The screening surface contains openings that determine which particles can pass through. It may be manufactured from wire mesh, perforated plate, polyurethane panels, rubber, or other materials.
The opening pattern and screen material should correspond to the material being processed.
Drive System
Vibrating and rotary screening machines require a mechanism that creates the necessary movement. Motors, eccentric mechanisms, shafts, gears, or other drive components may be used depending on the machine design.
Frame
The frame supports the screening deck, drive system, and other components. Industrial frames must accommodate mechanical loads and operating vibration.
Feed System
The feed arrangement distributes material onto the screening surface. Uniform material distribution can help make better use of the available screening area.
Discharge System
Screened materials leave the machine through separate discharge points. Multi-deck machines can create several product fractions from a single feed stream.
Important Specifications to Compare
When evaluating industrial screening machines, users should consider several specifications rather than focusing on capacity alone.
| Specification | Importance |
|---|---|
| Screen size | Determines available screening area |
| Opening size | Defines particle separation range |
| Number of decks | Determines potential size fractions |
| Screening capacity | Indicates material throughput |
| Motor power | Relates to the machine's drive requirements |
| Vibration frequency | Influences material movement |
| Screen material | Affects wear and application suitability |
| Feed size | Determines the type of material entering the machine |
| Machine dimensions | Important for plant layout |
| Moisture tolerance | Relevant for wet or damp materials |
Actual throughput can vary according to material density, moisture, particle shape, feed distribution, screen opening, and operating conditions.
Factors That Affect Screening Efficiency
Screening performance is influenced by several interconnected factors.
Particle Size Distribution
A material stream containing a wide range of particle sizes can behave differently from a stream containing particles concentrated around the target separation size.
Understanding the particle-size distribution helps determine suitable screen openings and machine configurations.
Moisture Content
Wet or sticky materials can cause particles to adhere to the screening surface. This can reduce the available open area and affect separation.
Specialized screen surfaces, increased movement, or other process adjustments may be considered for difficult materials.
Feed Rate
Excessive feed rates can create a thick material layer that prevents smaller particles from reaching the screen openings.
Consistent feed distribution can help maintain effective contact between the material and screening surface.
Screen Opening
The opening size directly influences the resulting particle fractions. Selecting an opening that does not correspond with the intended separation can produce inconsistent results.
Screening Area
A larger screening area generally provides more surface through which particles can interact with the screening surface. However, machine size should be matched to the required throughput and installation conditions.
Industrial Screening Machines vs. Other Separation Equipment
Screening is one of several methods used to separate bulk materials.
| Equipment | Main Separation Principle | Common Application |
|---|---|---|
| Vibrating screen | Mechanical vibration and size | Aggregates and minerals |
| Trommel | Rotary movement and size | Soil, waste, aggregates |
| Air classifier | Airflow and particle properties | Dry material classification |
| Magnetic separator | Magnetic properties | Ferrous material separation |
| Hydrocyclone | Fluid motion and density | Wet mineral processing |
The appropriate equipment depends on the physical properties of the material and the desired separation criteria.
Costs and Pricing Factors
The price of an industrial screening machine can vary according to its design, size, capacity, materials, and configuration.
Factors that can influence pricing include:
- Screening area
- Number of screening decks
- Machine capacity
- Screen media material
- Drive system
- Frame construction
- Automation and monitoring equipment
- Wear protection
- Installation requirements
- Replacement-component requirements
A meaningful comparison should consider the complete machine configuration and operating requirements rather than looking at the initial purchase figure alone.
Best Practices for Selecting Industrial Screening Machines
A structured selection process can help match equipment with the intended application.
1. Identify the material: Determine particle size, density, moisture, abrasiveness, and shape.
2. Establish throughput: Define the required material flow rate.
3. Determine separation sizes: Identify the particle sizes that need to be separated.
4. Select the screening method: Compare vibrating, rotary, trommel, gyratory, and static designs according to application requirements.
5. Review screen media: Consider wire mesh, perforated plate, rubber, polyurethane, or other suitable surfaces.
6. Evaluate maintenance requirements: Check access to screen panels, bearings, drives, and other components.
7. Consider installation: Review machine dimensions, support requirements, feed arrangements, and discharge locations.
Who Are Industrial Screening Machines Suitable For?
Industrial screening machines are used across many material-processing environments.
Mining operations can use screens to classify crushed ore and mineral materials. Quarries and aggregate facilities use them to separate different aggregate sizes.
Recycling facilities can screen mixed material streams, while construction operations may use screening systems to classify soil, stone, and demolition materials.
Other applications can include chemical processing, agricultural materials, food production, composting, and waste processing.
The appropriate machine depends on the material and separation requirements of each application.
Frequently Asked Questions
What are industrial screening machines used for?
Industrial screening machines separate bulk materials into different particle-size fractions. They are used in mining, quarrying, recycling, aggregate processing, construction, and various manufacturing applications.
How do industrial screening machines work?
Material is placed onto a screening surface containing openings of a defined size. Mechanical movement or gravity causes smaller particles to pass through the openings while larger particles continue toward another discharge point.
What is the difference between a vibrating screen and a trommel?
A vibrating screen uses controlled vibration to move material across a screening surface, while a trommel uses a rotating cylindrical drum. The appropriate choice depends on material characteristics and separation requirements.
What factors affect screening capacity?
Screen area, opening size, material characteristics, feed rate, moisture, particle shape, machine movement, and feed distribution can all influence screening capacity.
How should an industrial screening machine be selected?
Selection should consider the material type, feed size, desired separation sizes, throughput, moisture, screen media, machine configuration, installation requirements, and maintenance needs.
Conclusion
Industrial screening machines provide a practical method for separating bulk materials according to particle size and other physical characteristics. Vibrating screens, trommels, rotary screens, gyratory machines, and static screens each use different approaches to move and classify material.
When comparing equipment, users should examine screening capacity, screen opening, machine type, feed characteristics, screen media, number of decks, maintenance requirements, and installation conditions. Matching these factors with the processing objective can help establish an appropriate screening configuration.
