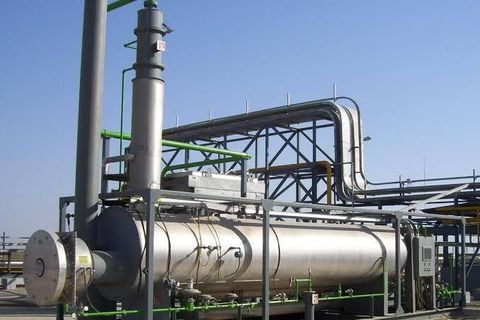

Gas dehydration equipment is used to remove water vapor from natural gas and other process gas streams.
Controlling moisture is important because water can contribute to corrosion, hydrate formation, pipeline restrictions, and changes in gas quality.
Gas dehydration systems are commonly integrated into natural gas processing facilities, gathering systems, transmission networks, and industrial gas operations. The equipment can use different dehydration methods depending on gas composition, flow rate, pressure, temperature, and required outlet moisture level.
Understanding how gas dehydration equipment works helps explain the role of absorbers, regenerators, filters, heat exchangers, pumps, and control systems within a complete dehydration process.
What Is Gas Dehydration Equipment?
Gas dehydration equipment is a group of process components designed to reduce water vapor in a gas stream.
Natural gas entering a processing facility can contain moisture acquired from underground formations, gathering pipelines, or processing operations. If this moisture remains in the gas, it can create operational problems under certain pressure and temperature conditions.
A gas dehydration system separates water from the gas before the treated stream moves to downstream processing, compression, storage, or transportation.
The equipment configuration depends on the selected dehydration technology. Common approaches include:
- Glycol absorption
- Solid desiccant adsorption
- Membrane-based separation
- Refrigeration and condensation
- Other specialized drying processes
Why Gas Dehydration Is Important
Preventing Hydrate Formation
Water and certain natural gas components can form solid crystalline structures called hydrates under suitable pressure and temperature conditions.
Hydrates can restrict gas flow and create operational problems in pipelines, valves, and process equipment. Dehydration reduces the amount of water available for hydrate formation.
Reducing Corrosion Risk
Water can contribute to corrosion when it interacts with certain components in a gas stream, particularly when acidic gases are present.
Removing moisture can therefore support corrosion management within gas processing and transportation systems.
Meeting Gas Quality Requirements
Natural gas transportation and processing specifications commonly include limits on water content or water dew point.
Dehydration equipment helps bring the gas within the required specification before downstream movement or processing.
Protecting Downstream Equipment
Excess moisture can affect compressors, pipelines, valves, heat exchangers, and other process equipment.
Moisture removal provides an additional layer of protection for equipment operating under controlled process conditions.
How Gas Dehydration Equipment Works
The operating sequence depends on the dehydration technology, but a typical glycol dehydration system follows several main stages.
1. Wet Gas Inlet
Wet natural gas enters the dehydration facility through an inlet system.
The gas may first pass through an inlet separator or filter to remove free liquids, hydrocarbon condensate, and solid particles.
Removing these materials helps protect downstream dehydration components.
2. Gas-Liquid Contact
In a glycol dehydration system, the wet gas enters an absorber or contactor.
Lean glycol flows downward through the contactor while wet gas moves upward. Internal trays or structured packing provide contact between the two streams.
The glycol absorbs water vapor from the gas.
3. Dry Gas Outlet
After contacting the lean glycol, the gas leaves the upper section of the contactor with reduced moisture content.
The treated gas can then pass through additional equipment before entering a pipeline or another processing stage.
4. Rich Glycol Collection
As the glycol absorbs water, it becomes water-rich or “rich glycol.”
The rich glycol leaves the contactor and is directed toward the regeneration section.
5. Glycol Regeneration
The rich glycol is heated in a regeneration system.
Heating separates absorbed water from the glycol, producing regenerated or “lean” glycol that can be circulated back to the contactor.
6. Glycol Recirculation
A circulation pump moves the regenerated glycol back toward the absorber.
The continuous circulation creates a closed process loop for water removal.
Main Components of Gas Dehydration Equipment
Inlet Separator
An inlet separator removes free liquids and solid contaminants from the incoming gas.
This step helps prevent liquid carryover into the dehydration contactor.
Contactor or Absorber
The contactor is the primary gas-liquid contact vessel in a glycol dehydration system.
It provides sufficient contact between wet gas and lean glycol for water absorption.
Glycol Circulation Pump
The circulation pump moves glycol between the contactor and regeneration system.
Pump selection depends on flow rate, pressure, temperature, and glycol circulation requirements.
Reboiler
The reboiler supplies heat during glycol regeneration.
It raises the temperature of the rich glycol so that absorbed water can be separated from the glycol.
Regenerator Column
The regenerator column works with the reboiler to remove water from rich glycol.
Water vapor exits the regeneration system while regenerated glycol is collected for recirculation.
Heat Exchanger
Heat exchangers can transfer heat between hot regenerated glycol and cooler rich glycol.
This can help manage thermal energy within the process.
Filters
Filters remove suspended particles and degradation products from the glycol circulation loop.
Different filtration arrangements can be used depending on the system design.
Control System
Instrumentation and control equipment monitor parameters such as pressure, temperature, liquid levels, flow rates, and process conditions.
Automated controls can regulate pumps, heating systems, valves, and alarms.
Common Gas Dehydration Technologies
| Technology | Working Principle | Typical Application |
|---|---|---|
| Glycol absorption | Water is absorbed by a liquid desiccant | Natural gas processing |
| Solid desiccant adsorption | Moisture attaches to a solid material | Low moisture requirements |
| Refrigeration | Cooling condenses water from gas | Selected gas treatment applications |
| Membrane separation | Membranes selectively separate components | Specialized gas processing |
| Molecular sieve adsorption | Porous material removes water molecules | Deep gas dehydration |
Glycol Dehydration Systems
Glycol dehydration is widely associated with natural gas processing.
Triethylene glycol, commonly referred to as TEG, is frequently used as the absorbing liquid because of its ability to absorb water and its suitability for regeneration.
A typical TEG dehydration system includes:
- Wet gas inlet
- Inlet separation
- Glycol contactor
- Dry gas outlet
- Rich glycol circulation
- Heat exchange
- Glycol regeneration
- Lean glycol cooling
- Glycol pumping
- Return to the contactor
The operating conditions are selected according to gas composition, water content, required outlet specification, and process design.
Solid Desiccant Dehydration
Solid desiccant systems use porous materials to capture water from gas.
Molecular sieves are an example of solid desiccants used when very low moisture levels are required.
These systems generally use multiple vessels. While one vessel is drying the gas, another can undergo regeneration.
Regeneration removes accumulated moisture from the desiccant so the material can be reused.
Factors Affecting Dehydration Performance
Gas Flow Rate
Higher gas flow rates can affect gas velocity through the contactor and the required equipment dimensions.
Inlet Water Content
The amount of moisture entering the system influences the dehydration load.
Gas Pressure
Pressure affects water behavior and gas properties and therefore needs to be considered during system design.
Gas Temperature
Temperature influences water vapor content and the performance of absorption and adsorption processes.
Desiccant Condition
The condition and circulation rate of the dehydration medium can influence moisture removal.
Outlet Moisture Requirement
The required gas specification determines the appropriate dehydration technology and operating conditions.
Monitoring and Control
Modern gas dehydration systems can incorporate sensors and automated control systems for continuous process monitoring.
Important measurements can include:
- Gas pressure
- Gas temperature
- Glycol temperature
- Glycol circulation rate
- Liquid level
- Differential pressure
- Water content
- Reboiler temperature
- Filter condition
Control systems can generate alarms when operating parameters move outside established ranges.
Online moisture analyzers may also be used where continuous monitoring of gas water content is required.
Maintenance of Gas Dehydration Equipment
Regular maintenance helps maintain stable operation and process reliability.
Typical activities include inspecting pumps, checking valves, cleaning filters, examining heat exchangers, and inspecting contactor internals.
For glycol systems, the condition of the glycol should also be monitored. Contamination, degradation, or excessive water loading can affect system operation.
Instrumentation should be inspected and calibrated according to the applicable maintenance schedule.
Desiccant systems require inspection of vessel internals, valves, heating systems, and desiccant condition.
Safety Considerations
Gas dehydration systems can operate at elevated pressures and temperatures and may process flammable hydrocarbons.
Pressure relief systems, emergency shutdown equipment, gas detection systems, ventilation, and appropriate process controls are important parts of facility safety.
Hot components such as reboilers and associated piping can present burn hazards. Maintenance activities should follow established isolation and energy-control procedures.
The specific safety requirements depend on the gas composition, facility design, operating pressure, temperature, and applicable regulations.
Applications of Gas Dehydration Equipment
Natural Gas Processing
Dehydration equipment removes moisture from natural gas before further processing or pipeline transportation.
Gas Gathering Systems
Gathering facilities may use dehydration systems to manage water content before gas enters larger transmission networks.
Gas Transmission
Pipeline operators use gas dehydration as part of gas conditioning to maintain required moisture specifications.
Gas Storage
Gas entering or leaving storage facilities may require moisture control depending on the storage process and gas specifications.
Industrial Gas Processing
Specialized gas dehydration systems can also be used for selected industrial gas streams where moisture control is required.
Frequently Asked Questions
What does gas dehydration equipment do?
Gas dehydration equipment removes water vapor from natural gas or other process gas streams. It helps control moisture before the gas enters downstream equipment or transportation systems.
How does a glycol dehydration system work?
A glycol dehydration system circulates lean glycol through a contactor where it absorbs water from wet gas. The water-rich glycol is then regenerated using heat and returned to the contactor.
What is TEG in gas dehydration?
TEG stands for triethylene glycol. It is a liquid desiccant commonly used to absorb water from natural gas in glycol dehydration systems.
What is a molecular sieve used for?
Molecular sieves are solid desiccant materials with very small pores that can selectively adsorb water molecules. They are used when gas streams require very low moisture levels.
What factors determine gas dehydration equipment selection?
Important factors include gas flow rate, pressure, temperature, inlet water content, gas composition, required outlet moisture level, operating conditions, and the selected dehydration technology.
Conclusion
Gas dehydration equipment removes water vapor from natural gas and other process gas streams to help control moisture-related operational problems. A typical glycol system uses an absorber, circulation pump, regeneration equipment, heat exchangers, filters, and control instrumentation to continuously remove and separate water.
Different technologies serve different process requirements. Glycol absorption is commonly associated with natural gas dehydration, while molecular sieve adsorption can be used when particularly low moisture levels are required.
Equipment selection and operating conditions should be based on gas composition, flow rate, pressure, temperature, inlet moisture, and the required outlet specification. Regular inspection, process monitoring, maintenance, and appropriate safety controls are important for maintaining consistent dehydration performance.
